超硬质合金孔钻MCMAX型

产品说明

可对50MM厚的钢板进行高精度，高速度穿孔也可打交叉重叠孔

刃部采用的三枚组合刃结构、齿距的不等分割、特殊硬质合金刀刃等是优尼卡独特技术的结晶

可加工铸铁板、钢板(HB200以下)、不锈钢板。

适合电动机：磁座钻/钻床/车床/铣床

有效长：50mm(MCMAX50)/35mm(MCMAX35)

3枚组合刃

3枚组合刃由若干个外刃、中刃、内刃组成。每个刀刃在切削过程中，只负担1/3左右的工作量，加上每个刀刃的内侧也均有切削刀。所以，可以使排屑非常顺畅。另外由于各刃分别负担一部分切削工作的特性，使得该孔钻极不容易产生崩刃现象。

孔钻穿孔的效率

由于孔钻为环形切削穿孔比麻花钻的粉碎切削穿孔的实际切削面积小，所以能以极短的时间完成穿孔作业。

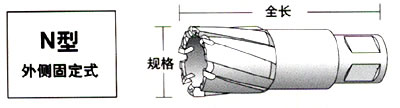

N型装卡方法(外侧固定式)


N型装卡方法	本体装卡	顶丝的正确固定
将适宜大小的中心钉插入MCMAX N型孔钻本体之中。	MCMAX N型孔钻卡头插入主轴，并将孔钻尾部平面部分与主轴上的螺纹孔对准。	用内六角板手，将固定用的顶丝拧紧。
※请在关闭电动机开关，并拔下电源插头后再进行装卸。

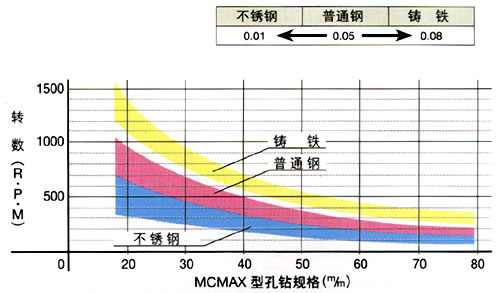

适宜转数

周速		普通钢=40～60/min
		不锈钢=20～40/min
		铸　铁=70～90/min

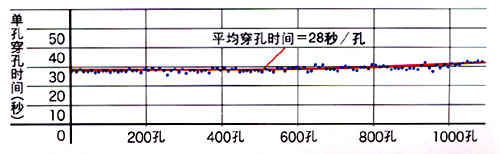

耐久试验

使用规格/MX50n-22.0被加工材/JIS SS400铁板(厚=25.0mm)

电动机/BM-50Y 1330W 750rpm(磁座钻)

其他/湿式、垂直向下穿孔(自动进给)

MCMAX孔钻适用机种及切削条件一览

商品号	适用机种	备注	切削条件
MX50N-型 (有效长50mm)	BDS磁座钻 MAB400 MAB800等	外侧固定式 19mm(3/4inch) 中心钉Ø8mm	[湿式穿孔]油性或水溶性的切削油内部供给。
MX35N-型 (有效长35mm)

N型MCMAX连接柄



各种(立式、摇臂式)钻床，车床，铣床均可使用的莫式锥柄。

商品号	手柄型号	适用规格(mm)	零售指导价(元／支)
MCN-MT2	莫氏2号锥柄	12～59	1600.00
MCN-MT2L	莫氏2号锥柄	60～100	未定
MCN-MT3	莫氏3号锥柄	12～59	1600.00
MCN-MT3L	莫氏3号锥柄	60～100	未定

工具盒套装系列--方便携带，保管

[MCMAX35套装]
18/20/22/24/26/32mm×各1支[TB-9S]
22/24/26mm×各2支[TB-10S]

[MCMAX50套装]
18/20/22/24/26/32mm×各1支[TB-9L]
22/24/26mm×各2支[TB-10L]

采用携带、收藏均极为便利的原装进口工具盒

MCMAX型超硬质合金孔钻套装[TOOL BOX SET]
商品号	套装规格(mm)						零售指导价(元／套)
TB-9S	18	20	22	24	26	32	2220.00
TB-10S	22	22	24	24	26	26	2218.00
TB-9L	18	20	22	24	26	32	2524.00
TB-10L	22	22	24	24	26	26	2522.00

技术参数

超硬质合金孔钻 MCMAX35(N型)
品名	规格(mm)	全长(mm)	有效长(mm)	零售指导价(元/支)
MX35N-12.0	12.0	73	35	339.00
MX35N-13.0	13.0			339.00
MX35N-14.0	14.0			339.00
MX35N-15.0	15.0			339.00
MX35N-16.0	16.0			339.00
MX35N-17.0	17.0			339.00
MX35N-18.0	18.0			339.00
MX35N-19.0	19.0			398.00
MX35N-20.0	20.0			398.00
MX35N-21.0	21.0			398.00
MX35N-21.5	21.5	73	35	398.00
MX35N-22.0	22.0			398.00
MX35N-23.0	23.0			398.00
MX35N-23.5	23.5			404.00
MX35N-24.0	24.0			404.00
MX35N-24.5	24.5			404.00
MX35N-25.0	25.0			404.00
MX35N-25.5	25.5			404.00
MX35N-26.0	26.0			404.00
MX35N-26.5	26.5			404.00
MX35N-27.0	27.0	73	35	404.00
MX35N-28.0	28.0			425.00
MX35N-29.0	29.0			431.00
MX35N-30.0	30.0			431.00
MX35N-31.0	31.0			431.00
MX35N-32.0	32.0			431.00
MX35N-33.0	33.0			431.00
MX35N-34.0	34.0			439.00
MX35N-35.0	35.0			439.00

超硬质合金孔钻 MCMAX50(N型)
品名	规格(mm)	全长(mm)	有效长(mm)	零售指导价(元/支)
MX50N-12.0	12.0	90	50	351.00
MX50N-13.0	13.0			351.00
MX50N-14.0	14.0			351.00
MX50N-15.0	15.0			351.00
MX50N-16.0	16.0			351.00
MX50N-17.0	17.0			351.00
MX50N-18.0	18.0			351.00
MX50N-19.0	19.0			413.00
MX50N-20.0	20.0			413.00
MX50N-21.0	21.0			413.00
MX50N-21.5	21.5			413.00
MX50N-22.0	22.0			413.00
MX50N-23.0	23.0			413.00
MX50N-23.5	23.5			421.00
MX50N-24.0	24.0			421.00
MX50N-24.5	24.5			421.00
MX50N-25.0	25.0	90	50	421.00
MX50N-25.5	25.5			421.00
MX50N-26.0	26.0			421.00
MX50N-26.5	26.5			421.00
MX50N-27.0	27.0			421.00
MX50N-28.0	28.0			448.00
MX50N-29.0	29.0			456.00
MX50N-30.0	30.0			456.00
MX50N-31.0	31.0			456.00
MX50N-32.0	32.0			456.00
MX50N-33.0	33.0			456.00
MX50N-34.0	34.0			466.00
MX50N-35.0	35.0			466.00
MX50N-36.0	36.0	90	50	466.00
MX50N-37.0	37.0			466.00
MX50N-38.0	38.0			466.00
MX50N-39.0	39.0			480.00
MX50N-40.0	40.0			480.00
MX50N-41.0	41.0			538.00
MX50N-42.0	42.0			544.00
MX50N-43.0	43.0			544.00
MX50N-44.0	44.0			556.00
MX50N-45.0	45.0			612.00
MX50N-46.0	46.0			612.00
MX50N-47.0	47.0			612.00
MX50N-48.0	48.0			612.00
MX50N-49.0	49.0	90	50	626.00
MX50N-50.0	50.0			626.00
MX50N-51.0	51.0			626.00
MX50N-52.0	52.0			626.00
MX50N-53.0	53.0			626.00
MX50N-54.0	54.0			641.00
MX50N-55.0	55.0			641.00
MX50N-56.0	56.0			641.00
MX50N-57.0	57.0			641.00
MX50N-58.0	58.0			641.00
MX50N-59.0	59.0			676.00
MX50N-60.0	60.0			787.00
MX50N-61.0	61.0			787.00
MX50N-62.0	62.0	90	50	787.00
MX50N-63.0	63.0			787.00
MX50N-64.0	64.0			787.00
MX50N-65.0	65.0			787.00
MX50N-66.0	66.0			787.00
MX50N-67.0	67.0			787.00
MX50N-68.0	68.0			787.00
MX50N-70.0	70.0			866.00
MX50N-71.0	71.0			866.00
MX50N-72.0	72.0			866.00
MX50N-75.0	75.0			866.00
MX50N-77.0	77.0			957.00
MX50N-78.0	78.0			957.00
MX50N-80.0	80.0			957.00
MX50N-83.0	83.0			1012.00
MX50N-85.0	85.0			1012.00
MX50N-90.0	90.0			1174.00
MX50N-95.0	95.0			1174.00
MX50N-100.0	100.0			1694.00
MX50N-105.0	105.0			1776.00
MX50N-110.0	110.0			1776.00
MX50N-115.0	115.0			1776.00
MX50N-120.0	120.0			1776.00
MX50N-125.0	125.0			2375.00
MX50N-130.0	130.0			2969.00

超硬质合金孔钻 MCMAX75(N型)
品名	规格(mm)	零售指导价(元/支)
MX75N-18.0	18.0	503.00
MX75N-19.0	19.0	503.00
MX75N-20.0	20.0	503.00
MX75N-21.0	21.0	503.00
MX75N-22.0	22.0	503.00
MX75N-23.0	23.0	503.00
MX75N-24.0	24.0	515.00
MX75N-25.0	25.0	515.00
MX75N-26.0	26.0	515.00
MX75N-27.0	27.0	515.00
MX75N-28.0	28.0	515.00
MX75N-29.0	29.0	515.00
MX75N-30.0	30.0	530.00
MX75N-31.0	31.0	530.00
MX75N-32.0	32.0	530.00
MX75N-33.0	33.0	530.00
MX75N-34.0	34.0	544.00
MX75N-35.0	35.0	544.00
MX75N-36.0	36.0	544.00
MX75N-37.0	37.0	544.00
MX75N-38.0	38.0	544.00
MX75N-39.0	39.0	562.00
MX75N-40.0	40.0	618.00
MX75N-41.0	41.0	618.00
MX75N-42.0	42.0	618.00
MX75N-43.0	43.0	638.00
MX75N-44.0	44.0	638.00
MX75N-45.0	45.0	638.00
MX75N-46.0	46.0	638.00
MX75N-47.0	47.0	638.00
MX75N-48.0	48.0	665.00
MX75N-49.0	49.0	665.00
MX75N-50.0	50.0	665.00
MX75N-51.0	51.0	764.00
MX75N-52.0	52.0	764.00
MX75N-53.0	53.0	764.00
MX75N-54.0	54.0	790.00
MX75N-55.0	55.0	790.00
MX75N-56.0	56.0	790.00
MX75N-57.0	57.0	790.00
MX75N-58.0	58.0	790.00
MX75N-59.0	59.0	883.00
MX75N-60.0	60.0	883.00
MX75N-61.0	61.0	883.00
MX75N-62.0	62.0	883.00
MX75N-63.0	63.0	883.00
MX75N-64.0	64.0	883.00
MX75N-65.0	65.0	883.00
MX75N-66.0	66.0	930.00
MX75N-67.0	67.0	930.00
MX75N-68.0	68.0	930.00
MX75N-70.0	70.0	942.00
MX75N-71.0	71.0	942.00
MX75N-72.0	72.0	942.00
MX75N-73.0	73.0	980.00
MX75N-74.0	74.0	980.00
MX75N-75.0	75.0	980.00
MX75N-76.0	76.0	980.00
MX75N-77.0	77.0	1308.00
MX75N-78.0	78.0	1308.00
MX75N-79.0	79.0	1378.00
MX75N-80.0	80.0	1378.00
MX75N-81.0	81.0	1378.00
MX75N-82.0	82.0	1378.00
MX75N-83.0	83.0	1378.00
MX75N-84.0	84.0	1507.00
MX75N-85.0	85.0	1507.00
MX75N-86.0	86.0	1507.00
MX75N-87.0	87.0	1507.00
MX75N-88.0	88.0	1507.00
MX75N-89.0	89.0	1527.00
MX75N-90.0	90.0	1527.00
MX75N-91.0	91.0	1527.00
MX75N-92.0	92.0	1527.00
MX75N-93.0	93.0	1527.00
MX75N-94.0	94.0	1615.00
MX75N-95.0	95.0	1615.00
MX75N-96.0	96.0	1615.00
MX75N-97.0	97.0	1615.00
MX75N-98.0	98.0	1615.00
MX75N-99.0	99.0	1764.00
MX75N-100.0	100.0	1764.00
MX75N-105.0	105.0	2197.00
MX75N-110.0	110.0	2355.00
MX75N-115.0	115.0	2355.00
MX75N-120.0	120.0	2475.00
MX75N-125.0	125.0	3379.00
MX75N-130.0	130.0	4224.00
备注：MX75N产品为优尼卡特殊制品，需要订做，每个规格每次少订5支。
